Wood chipper
If you need to cut your raw material into smaller pieces, a wood chipper will be suitable for your needs. With a ABC Machinery Biomass Pellet Mill, you can use a wood chipper to cut wood logs, thick branches or thick straws into slices of 20-30mm. In the next step, a hammer mill is needed to crush the slices into smaller pieces, meeting the size requirement of the ring die pellet mill.
In ABC Machinery, we mainly use the drum chipper.

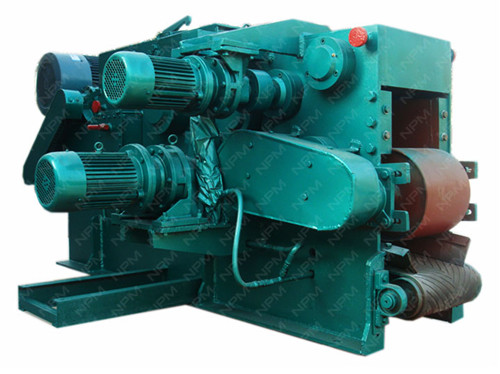

The drum chipper
ABC Machinery can provide you with the following models of wood chippers:
Model | B*215 | B*216 | B*218 | B*2113 |
Cutter(piece) | 2 | 2 | 2 | 2 |
Speed(rpm) | 592 | 590 | 650 | 500 |
Max.allowed(mm) | 160 | 230 | 300 | 450 |
Outputs size(mm) | 30 | 30 | 30 | 38 |
Capacity(ton) | 3-4 | 7-8 | 12-15 | 15-30 |
Main motor power(KW) | 45 | 55 | 110 | 200-250 |
Feeder roller motor power(KW) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Oil pump motor power(KW) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
Weight(kg) | 2990 | 4070 | 7000 | 11840 |
Outer dimension(mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
Conveyor motor power(KW) | 3 | 3 | 3 | 3 |
.
