NPM Wood Disc Chipper is of Compact Structure and High Capacity

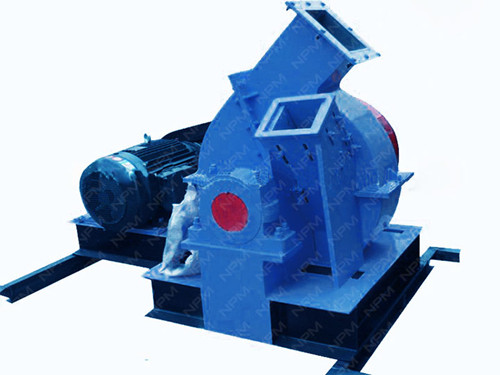

Wood disc chipper

The ABC Machinery Wood Disc Chipper is widely used for paper making, shaving board making, and medium density fiber board making. The raw materials are always logs.


Wood disc chipper



Both low voltage and high voltage are available for your choice. For the ABC Machinery Wood Disc Chipper, there are pulley-drive type and direct motor drive type; horizontal feeding type and inclined feeding type; top discharge type and bottom discharge type, moveable type and fixed type.

ABC Machinery wood disc chipper features in compact structure, easy installation and maintenance, high productivity, high quality chippers, adjustable output size.

A disc chipper consists of base, disc, feed inlet, cover, electric control system, etc. The following is a typical description for disc chipper. You may choose different models as per your actual requirement. NMP is glad to help you choosing the right model if you can send us your project information.



Blade rolle diameter(mm) 500
Blade (piece) 2
Feed inlet size(mm) 180*400
Blade roller speed(m/min) 592
Feeding speed(m/min) 38
Max.size allowed(mm) 160
Chipper(t/h) 35
Capacity(t/h) 5-8
Main motor power(KW) 45
Feeder roller motor power(KW) 2.2*2
Weight(ton) 2.9
Outer dimension(mm)(L*W*H) 1540*1240*1020




.
